Hello, apologize if the title do not makes sense, I do not know exactly how you call the bracket in picture, maybe Admin can helps me modifying the name...

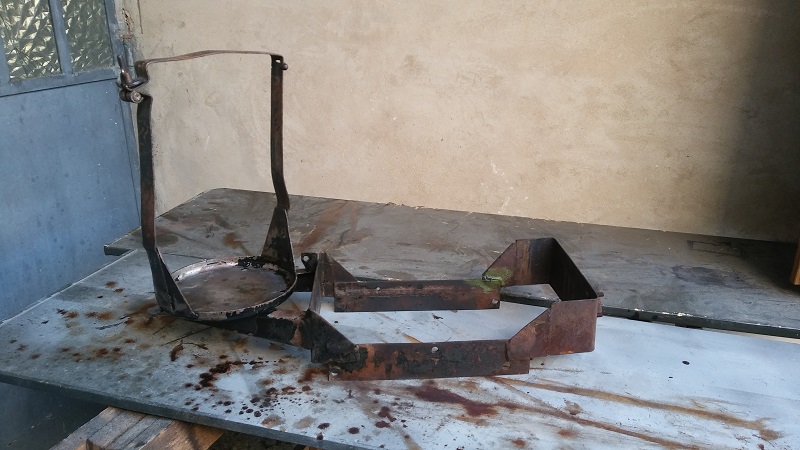

As you can see in the picture the previous owner modified the bracket in order to put a longer battery and now I want to come back to the original shape but I do not have any reference.
Could someone be so kind of send me a picture of the original one?
thank you
battery housing
battery housing
- Attachments
-
- 20210329_142450.jpg (160.7 KiB) Viewed 710 times
-
- 20210326_083944.jpg (133.68 KiB) Viewed 710 times
Re: battery housing

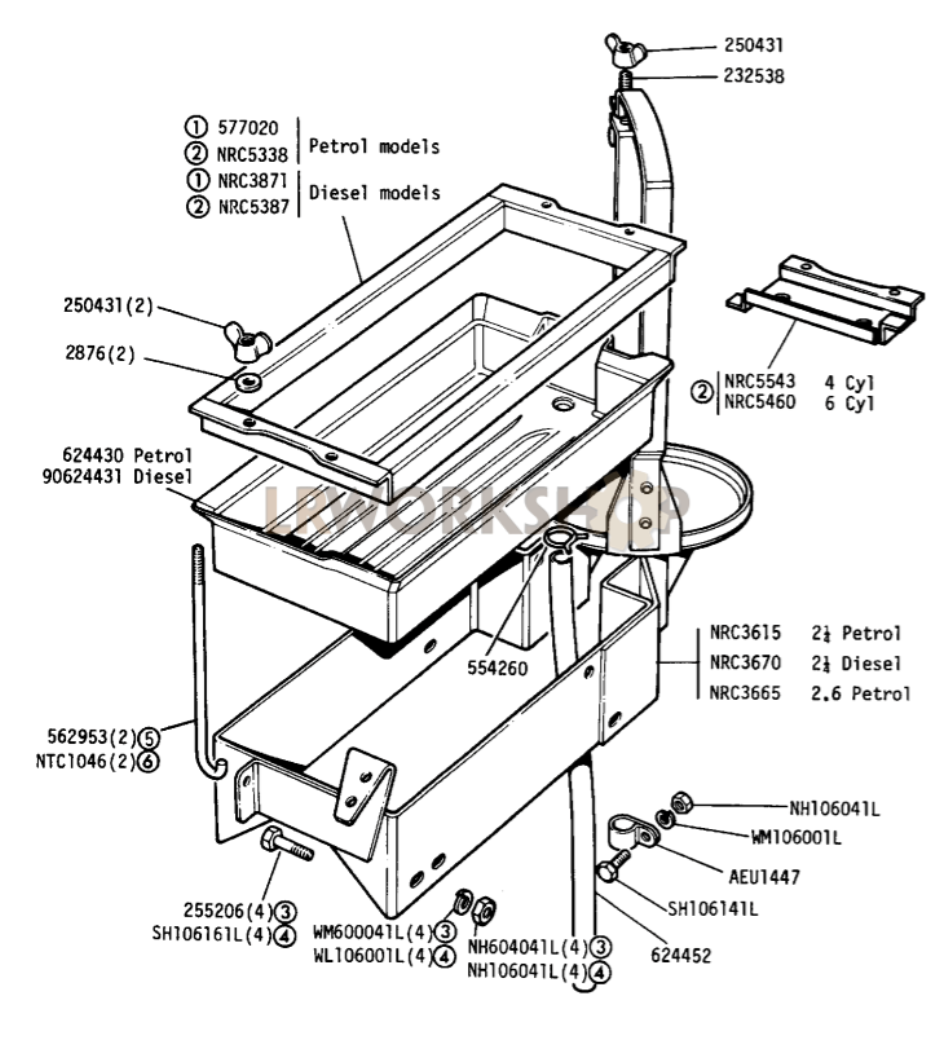

Maybe this will help?
https://www.lrworkshop.com/diagrams/lan ... 9in-v8_397
https://www.lrworkshop.com/diagrams/lan ... 9in-v8_397
- Screen Shot 2021-03-29 at 10.47.52 am.png (418.61 KiB) Viewed 689 times
Re: battery housing
Thank you so much
It is what I need
It is what I need
Re: battery housing
If you vehicle is a 2A 12 volt then you have the correct type (562928) it just needs cutting back and rewelding. The battery cover (clamp) is 236986
