Ok it's a 50/50 - brake master cylinder!

[Bob Fell]

Ok it's a 50/50 - brake master cylinder!

And we have a winner , well done Chris


This is the Girling brake master cylinder off my vehicle that was weeping. As they are unobtainable NOS, I had it remanufactured by these peoplehttp://www.pastparts.co.uk/ who I cannot recommend highly enough, their service and workmanship is excellent and reasonably priced.

Regards
Bob

[AR4412]

Hiya Bob! ,

That looks too shiny to fit to a Land Rover. Thanks for sharing the link, it's good to have the details of a place that can refurb the original master cylinders.

Don't go getting fingerprints on it when you fit it back on the truck mate.

Regards,

[Bob Fell]

Well, following on, here's a few pics;
I refurbed the servo with a new front end seal as it had to be repainted, no brake fluid internal ingress to the servo as I caught it early and the weep groove was not blocked;



,
Service kit was from Blanchard's, ex-mod Donnington dated 1980, all rubber in vgc despite age, a tad expensive but I cannot bring myself to fit replacement parts.


No fingerprints
Regards
Bob

[Loulou]

Well done Bob,

Good performance, respect for the approach to re-use quality originals and good reassembly work in the rules of the art.

Regards.
Looloo

[Keith]

Well, following on, here's a few pics;
I refurbed the servo with a new front end seal as it had to be repainted, no brake fluid internal ingress to the servo as I caught it early and the weep groove was not blocked;
P1010424.JPG,
Service kit was from Blanchard's, ex-mod Donnington dated 1980, all rubber in vgc despite age, a tad expensive but I cannot bring myself to fit replacement parts.
No fingerprints
Regards
Bob

Good evening Bob.
Can I ask if the white vacuum piece on the brake servo was replaced. I do require this piece also.

Nice job.

Keith

[Bob Fell]

Hi Keith,
You are referring to the non-return valve, part no.18G8953L . No, I did not replace this as the servo, with the exception of the front seal which I thought a bit iffy, was in vgc and working as it should.
The valve is available from Blanchard's.
Regards,
Bob

[Keith]

Very grateful indeed for top info.

Regards

Keith

[Bob Fell]

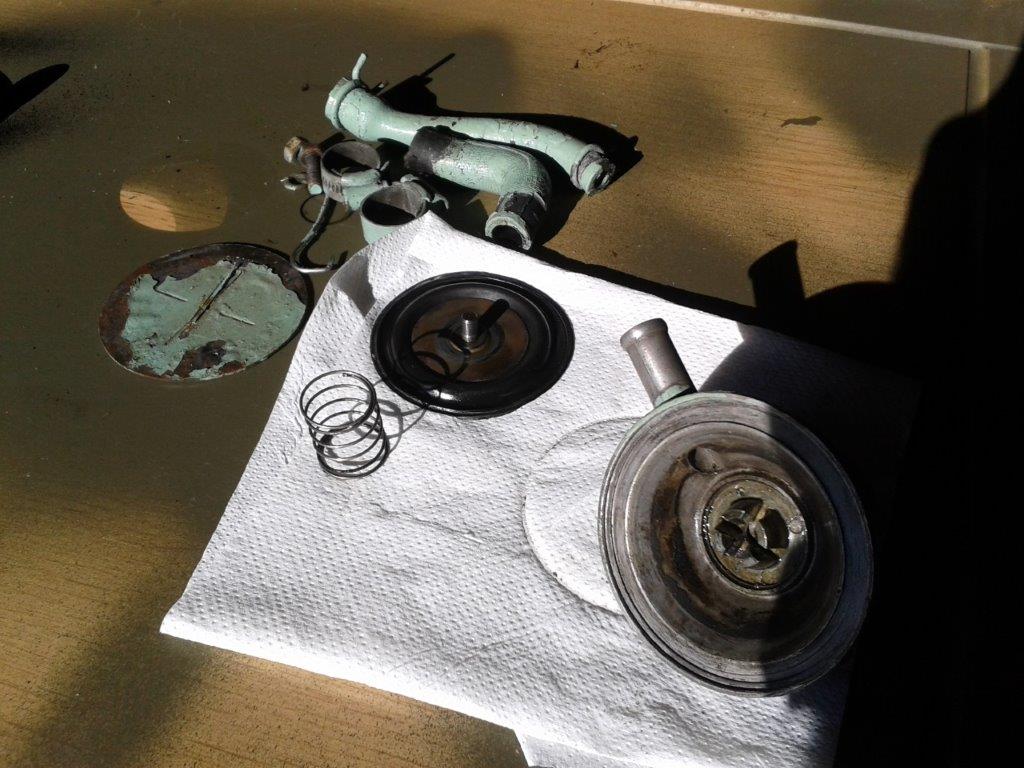

Emission control valve servicing...often forgotten about but needs doing
Mine was pretty cruddy...

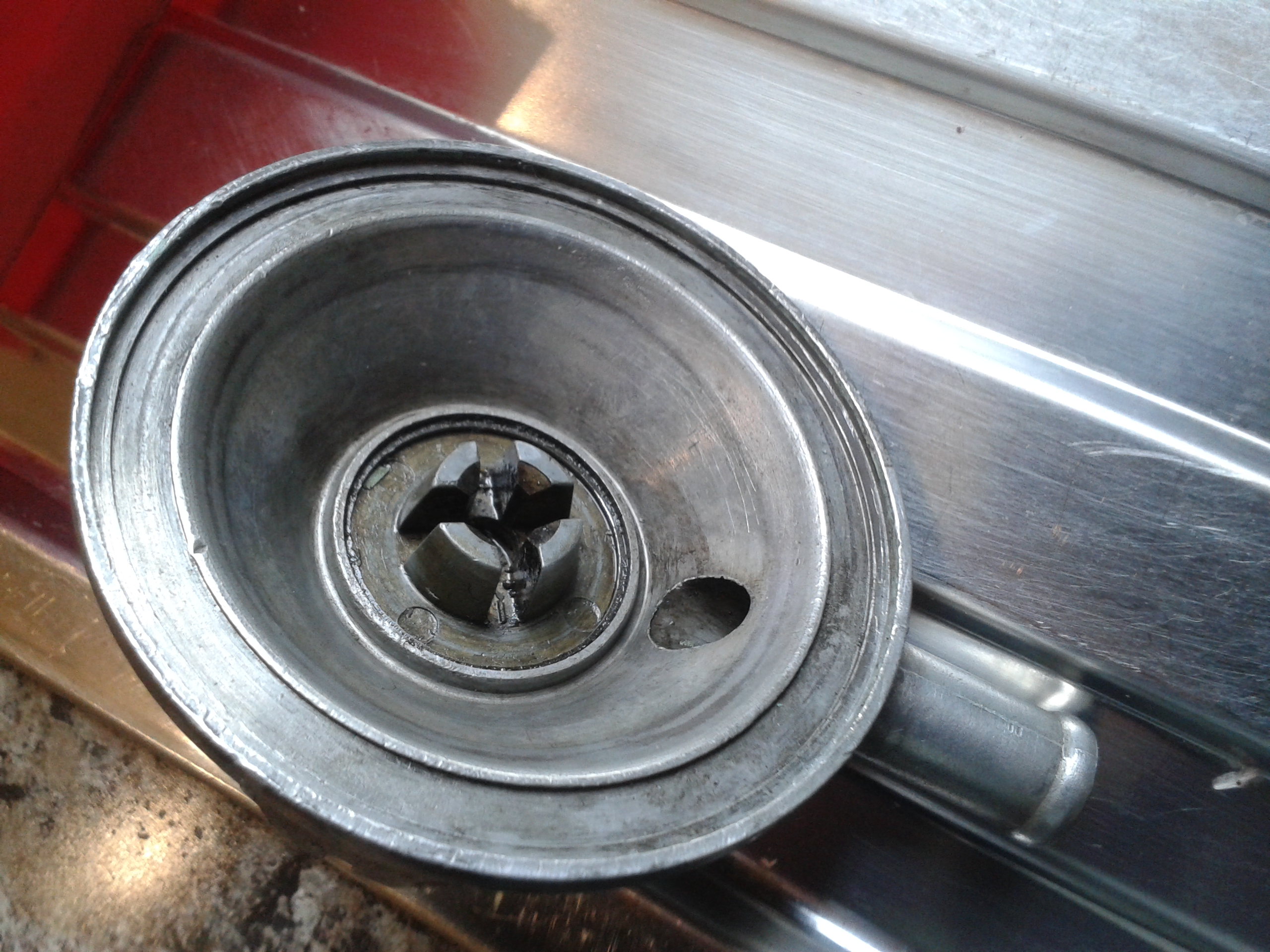

But cleaned up nicely:



and painted..,


[Bob Fell]

Disc has gone in mild acid solution:


and come out like this..,


I wasn't going to paint it but the surface isn't good enough so looks like I'm going to have to.
That's all for now.
Regards
Bob
